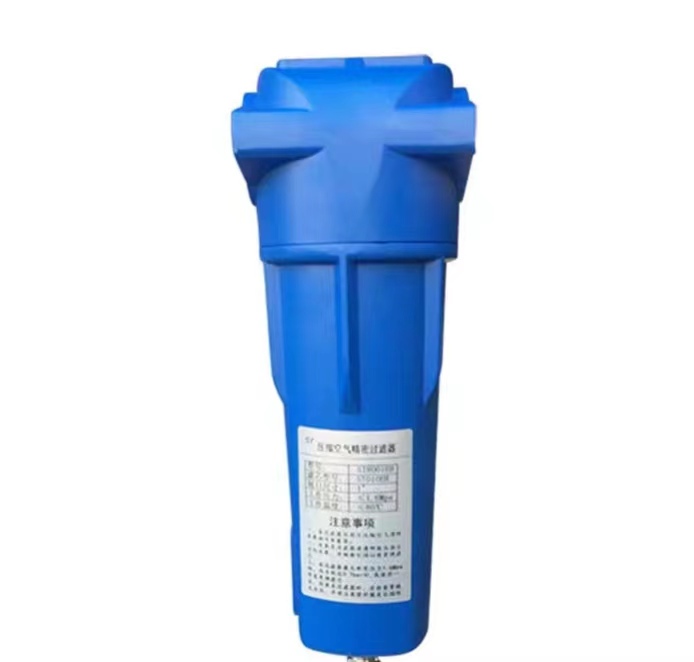

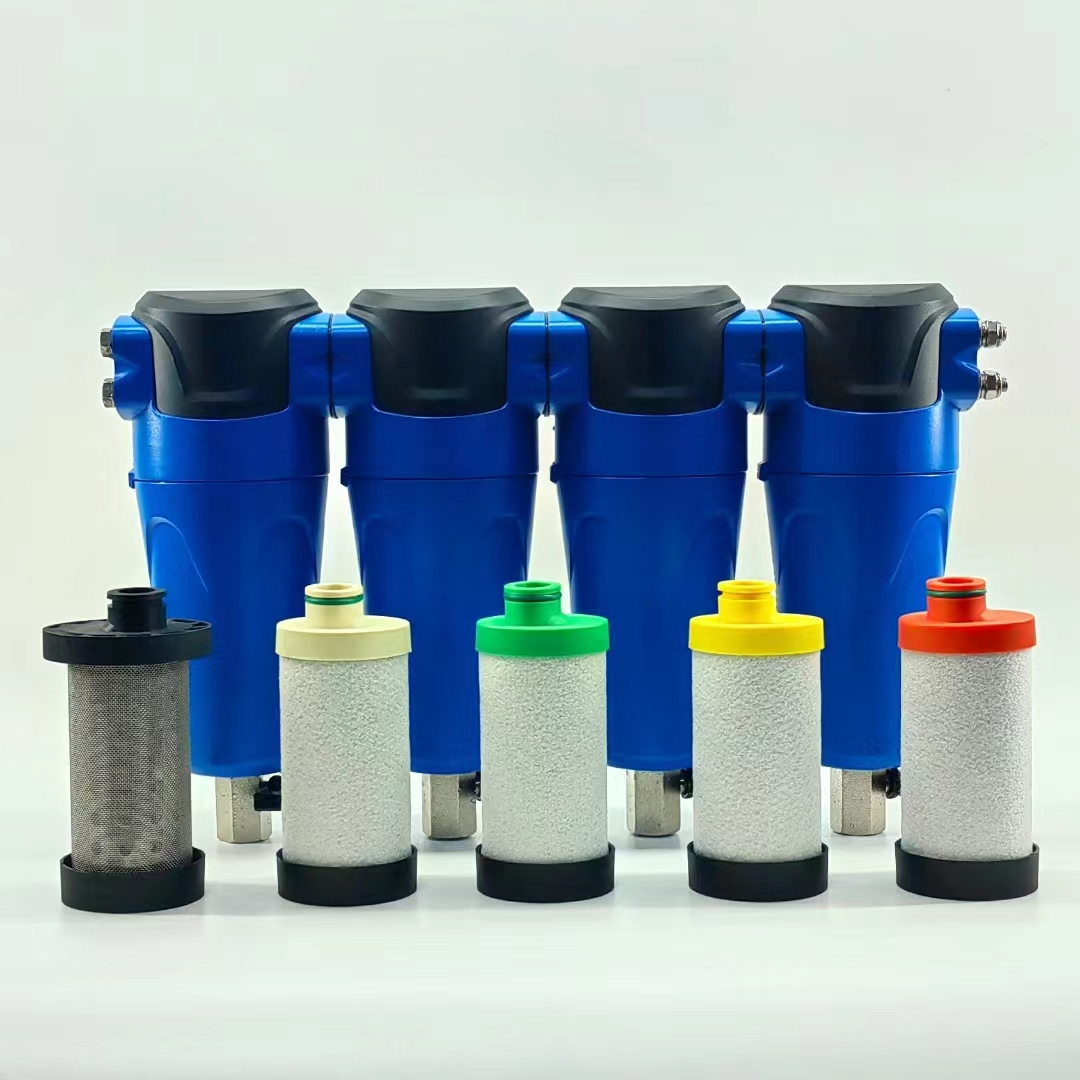

air compressor water separator filter housing outlet DN25 DN 50

PRODUCT INFORMATION

WATER REMOVAL HOUSING

Remove particles above 3um (micrometer)

lnitial pressure difference: 0.01Mpa

Filter element replacement time: 4000 hours after starting the air compressor

Residual oil content: 5ppm

DUST REMOVAL HOUSING

Remove particles above 1um (micrometer)

lnitial pressure difference: 0.01Mpa

Filter element replacement time: 4000 hours after starting theair compressor,

Residual oil content: 1ppm

Filter element replacement pressure difference: 0.7MPA
OIL REMOVAL HOUSING

Removal of particles above 0.1pm (micrometer)

lnitialpressure difference: 0.01Mpa

Filter element replacementtime: 4000 hours after starting the air machine

Residual oil content: 0.01ppm

Filter element rernt pressure difference: 0.7Mpa
